Dynamic Rule Based Decision Trees in Neo4j

A few posts ago I showed you how to build a Boolean Logic Rules Engine in Neo4j. What I like about it is that we’ve pre-calculated all our potential paths, so it’s just a matter of matching up our facts to the paths to get to the rule and we’re done. But today I am going to show you a different approach where we are going to have to calculate what is true as we go along a decision tree to see which answer we get to.

Yes, it will be a bit slower than the first approach, but we avoid pre-calculation. It also makes things a bit more dynamic, as we can change the decision tree variables on the fly. The idea is to merge code and data into one, to gain the benefit of agility.

Let’s model a super simple decision tree in Neo4j. Imagine you are a “bouncer” at a club, and the club policy is that anyone over 21 is allowed in, anyone under 18 is not allowed, but they make a special case where women 18 and older are allowed in.

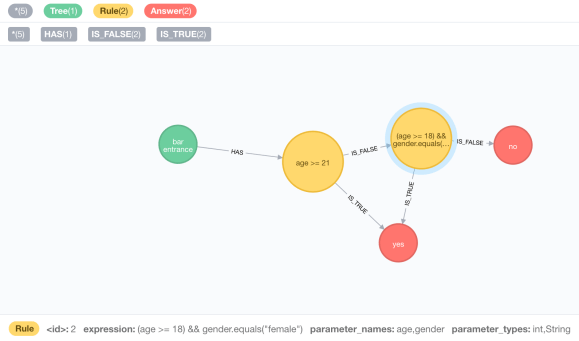

It could look like this in Neo4j:

What we have here is a “Tree” node with an id property of “bar entrance” in green, two “Answer” nodes (yes and no) in red, and two Rule nodes in yellow. The first rule node asks, is the age greater than or equal to 21. It has an “IS_TRUE” relationship to the “yes” Answer node, and an “IS_FALSE” relationship to the second Rule node. The second Rule node asks if the age is greater than or equal to 18, AND the gender is “female”. It also has an “IS_TRUE” relationship to the “yes” Answer node, and an “IS_FALSE” relationship to the “no” Answer node.

What we are going to do is build a Cypher stored procedure that takes an id of the decision tree we are going to traverse, and a set of facts. In our case we care about the gender and age facts about the person our bouncer is considering to let into the club. For example we could call the procedure like this:


CALL com.maxdemarzi.traverse.decision_tree('bar entrance', {gender:'male', age:'20'})
YIELD path
RETURN path;

It would return a path, because we want to know how it got to the answer, not just what the answer is. Neo4j is pretty good at traversing nodes and relationships, but it doesn’t really know how to interpret an expression like “age >= 21”. It needs some way to compile that expression and evaluate it. To accomplish this task we can add Janino to Neo4j.


        <dependency>
            <groupId>org.codehaus.janino</groupId>
            <artifactId>janino</artifactId>
            <version>${janino.version}</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>org.codehaus.janino</groupId>
            <artifactId>commons-compiler</artifactId>
            <version>${janino.version}</version>
            <scope>provided</scope>
        </dependency>

We will see it in action later, let’s get the stored procedure setup first. We will first find the tree we care about by getting the id in the parameters, and if we find it return the path in our decisionPath method.


    @Procedure(name = "com.maxdemarzi.traverse.decision_tree", mode = Mode.READ)
    @Description("CALL com.maxdemarzi.traverse.decision_tree(tree, facts) - traverse decision tree")
    public Stream<PathResult> traverseDecisionTree(
                                 @Name("tree") String id,
                                 @Name("facts") Map<String, String> facts) throws IOException {
        // Which Decision Tree are we interested in?
        Node tree = db.findNode(Labels.Tree, "id", id);
        if ( tree != null) {
            // Find the paths by traversing this graph and the facts given
            return decisionPath(tree, facts);
        }
        return null;
    }

Our decisionPath method, will build a TraversalDescription, using a new DecisionTreeExpander for each set of facts, a static DecisionTree Evaluator and return the paths it finds. This is pretty straight forward using Neo4j’s Traversal API.:


    private Stream<PathResult> decisionPath(Node tree, Map<String, String> facts) {
        TraversalDescription myTraversal = db.traversalDescription()
                .depthFirst()
                .expand(new DecisionTreeExpander(facts))
                .evaluator(decisionTreeEvaluator);

        return myTraversal.traverse(tree).stream().map(PathResult::new);
    }

Let’s start backwards by looking at that decision tree evaluator. It will simply return a valid path when we get to an Answer node, otherwise it will keep going:


public class DecisionTreeEvaluator implements PathEvaluator {
    @Override
    public Evaluation evaluate(Path path, BranchState branchState) {
        // If we get to an Answer stop traversing, we found a valid path.
        if (path.endNode().hasLabel(Labels.Answer)) {
            return Evaluation.INCLUDE_AND_PRUNE;
        } else {
            // If not, continue down this path if there is anything else to find.
            return Evaluation.EXCLUDE_AND_CONTINUE;
        }
    }

Now on to the expander. In the constructor, we will take a Map of facts holding the key and value of the things we know. We will also create a new ExpressionEvaluator and set it to be a boolean type. This means it will evaluate an expression and return true or false.


public class DecisionTreeExpander implements PathExpander {
    private Map<String, String> facts;
    private ExpressionEvaluator ee = new ExpressionEvaluator();

    public DecisionTreeExpander(Map<String, String> facts) {
        this.facts = facts;
        ee.setExpressionType(boolean.class);
    }

The expand method of our Expander tells the Traversal where to go next. If we reach an Answer node, we stop expanding since we made it to a valid path. If we get to a node that has a rules node to evaluate (like the “Tree” node at the root of our Decision Trees) we go get those rules:


@Override
    public Iterable<Relationship> expand(Path path, BranchState branchState) {
        // If we get to an Answer stop traversing, we found a valid path.
        if (path.endNode().hasLabel(Labels.Answer)) {
            return Collections.emptyList();
        }

        // If we have Rules to evaluate, go do that.
        if (path.endNode().hasRelationship(Direction.OUTGOING, RelationshipTypes.HAS)) {
            return path.endNode().getRelationships(Direction.OUTGOING, RelationshipTypes.HAS);
        }

Now, once we get to a Rule Node. We pass it to the isTrue method. If it evaluates to True, it continues down the IS_TRUE relationship. If it evaluates to False, it continues down the IS_FALSE relationship. Pretty straight forward right?


        if (path.endNode().hasLabel(Labels.Rule)) {
            try {
                if (isTrue(path.endNode())) {
                    return path.endNode().getRelationships(Direction.OUTGOING, RelationshipTypes.IS_TRUE);
                } else {
                    return path.endNode().getRelationships(Direction.OUTGOING, RelationshipTypes.IS_FALSE);
                }
            } catch (Exception e) {
                // Could not continue this way!
                return Collections.emptyList();
            }
        }

Ok, now we are in the isTrue method, what do we do here. First we get the properties of the Rule node. Then we set the parameterNames (which should be a comma separated list of strings) into a String Array. Then we set the parameterType (which should be another comma separated list of strings) into an Array by converting each class name into a Type. So for example a “boolean” will convert to a boolean.class:


private boolean isTrue(Node rule) throws Exception {
     Map<String, Object> ruleProperties = rule.getAllProperties();
     String[] parameterNames = Magic.explode((String) ruleProperties.get("parameter_names"));
     Class<?>[] parameterTypes = Magic.stringToTypes((String) ruleProperties.get("parameter_types"));

Next, we will fill an arguments array with the facts passed into the Expander, set these parameters on our ExpressionEvaluator, “cook” (scan, parse, compile and load) the expression and finally return the output of its evaluation:


     Object[] arguments = new Object[parameterNames.length];
     for (int j = 0; j < parameterNames.length; ++j) {
         arguments[j] = Magic.createObject(parameterTypes[j], facts.get(parameterNames[j]));
     }
     ee.setParameters(parameterNames, parameterTypes);
     ee.cook((String)ruleProperties.get("expression"));

     return (boolean) ee.evaluate(arguments);
}

I’ve skipped the “Magic” methods, but you can find them here. That’s all the code we need to write, now to test it. First we need to create our Decision Tree in Cypher:


    CREATE (tree:Tree { id: 'bar entrance' })
    CREATE (over21_rule:Rule { parameter_names: 'age',
                               parameter_types:'int',
                               expression:'age >= 21' })
    CREATE (gender_rule:Rule { parameter_names: 'age,gender',
                               parameter_types:'int,String',
                               expression:'(age >= 18) && gender.equals(\"female\")' })
    CREATE (answer_yes:Answer { id: 'yes'})
    CREATE (answer_no:Answer { id: 'no'})
    CREATE (tree)-[:HAS]->(over21_rule)
    CREATE (over21_rule)-[:IS_TRUE]->(answer_yes)
    CREATE (over21_rule)-[:IS_FALSE]->(gender_rule)
    CREATE (gender_rule)-[:IS_TRUE]->(answer_yes)
    CREATE (gender_rule)-[:IS_FALSE]->(answer_no)

…and call the stored procedure with different parameters. A 20 year old male?


CALL com.maxdemarzi.traverse.decision_tree('bar entrance', {gender:'male', age:'20'})
YIELD path
RETURN path;

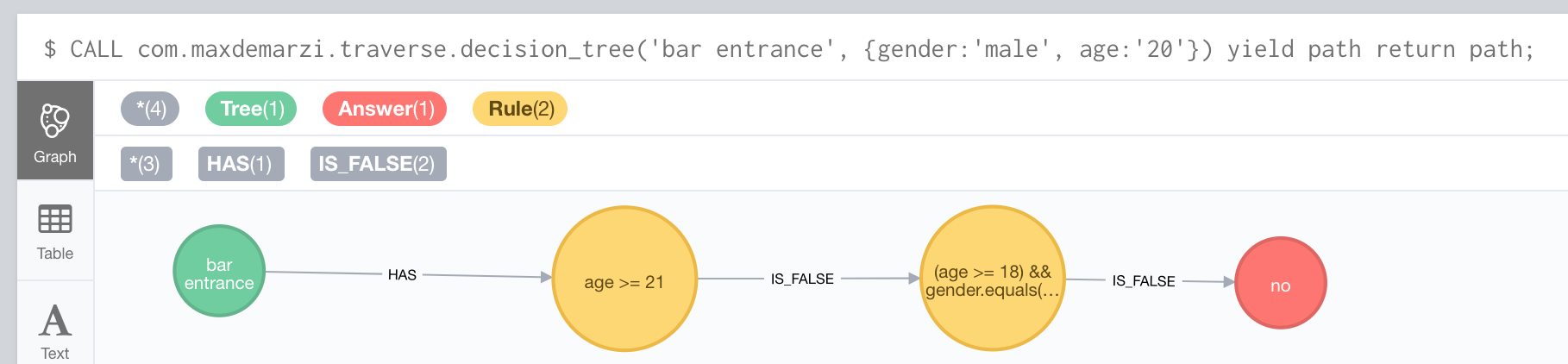

Our answer is “No”:

A 19 year old female?


CALL com.maxdemarzi.traverse.decision_tree('bar entrance', {gender:'female', age:'19'})
YIELD path
RETURN path;

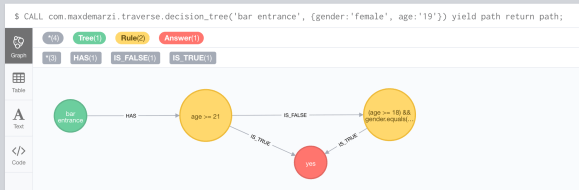

Our answer is “Yes”:

Pretty neat right? You can make pretty simple or extremely complicated decision trees and change them on the fly, Neo4j will read the properties of the Rule nodes with every request. You can keep multiple versions of decision trees and compare their results, you can create potential decision trees and run your old facts through, etc.

As always the source code is on github, enjoy.

Part 2 is now published. Also video below:
