Neo4j Internals

An overview of Neo4j Internals

View more presentations from Tobias Lindaaker

It is interesting to see how node, relationship and property records are stored differently on disk and in the cache.

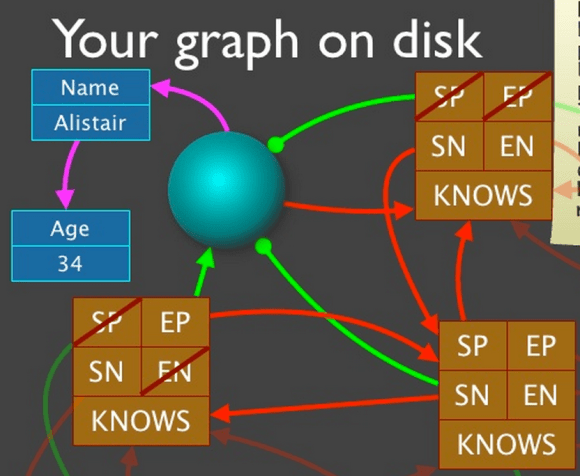

It is all linked lists of fixed size records on disk. Properties are stored as a linked list of property records, each holding a key and value and pointing to the next property. Each node and relationship references its first property record. The Nodes also reference the first relationship in its relationship chain. Each Relationship references its start and end node. It also references the previous and next relationship record for the start and end node respectively.

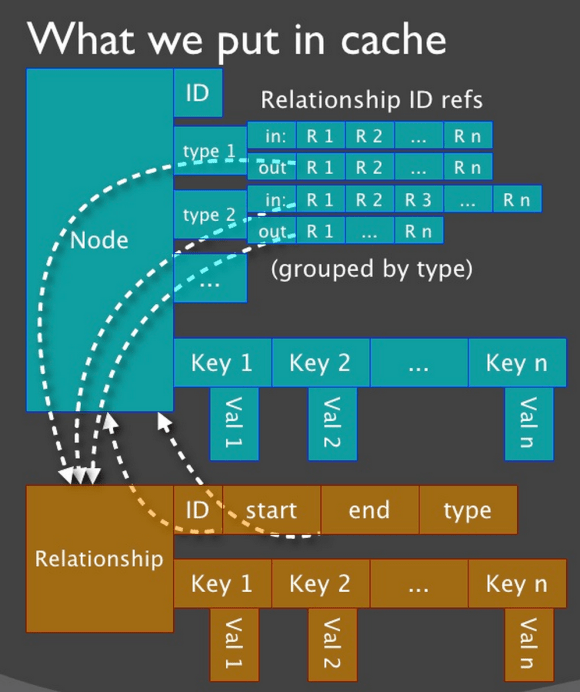

On disk most of the information is contained in the relationship records, with the nodes just referencing their first relationship. In the Node cache this is turned around: the nodes hold references to all of its relationships. The relationships are simple, only holding its properties. The relationships for each node is grouped by RelationshipType to allow fast traversal of a specific type. All references (dotted arrows) are by ID, and traversals do indirect lookup through the cache.
