Permission Resolution with Neo4j – Part 2

the-princess-bride-original3

Let’s try tackling something a little bigger. In Part 1 we created a small graph to test our permission resolution graph algorithm and it worked like a charm on our dozen or so nodes and edges. I don’t have fast hands, so instead of typing out a million node graph, we’ll build a graph generator and use the batch importer to load it into Neo4j. What I want to create is a set of files to feed to the batch-importer.

A nodes.csv file (is actually tab separated, the c is just there to make sure you were paying attention) looks like the following:

unique_id       type
9a984170-71cc-0130-92a0-20c9d042eca9    user
9a984450-71cc-0130-92a0-20c9d042eca9    user
9a984550-71cc-0130-92a0-20c9d042eca9    user
...
a67769a0-71cc-0130-92a0-20c9d042eca9    doc
a6776a40-71cc-0130-92a0-20c9d042eca9    doc

The node ids are not set above, instead the line number represents the node id that will be created in our graph. The unique_id and type are properties of the nodes. A rels.csv file is also needed, and it looks like the following:

start   end     type    flags
1       3003    IS_MEMBER_OF
1       3060    IS_MEMBER_OF
2       3032    IS_MEMBER_OF
...
754949  272265  IS_CHILD_OF
825621  283395  IS_CHILD_OF

In this case the start and end columns are the node ids these relationships are connecting via a type (required) and some properties (if any). To make these files I build a quick Rakefile to help me make two sets of these. One graph will have a million nodes, the other 10 million and we will see how well Neo4j scales in this regard. Will a 10x increase in the number of documents in the graph result in 1/10x performance of our algorithm?

require 'neography/tasks'
require './neo_generate.rb'

namespace :neo4j do
  task :create do
    %x[rm *.csv]
    create_graph
  end

  task :create_bigger do
    %x[rm *.csv]
    create_bigger_graph
  end

  task :load do
    %x[rm -rf neo4j/data/graph.db]
    load_graph
  end
end

The create graph and create bigger graph methods are almost identical, the only real difference is how many nodes they will end up creating:

  def create_graph
    create_node_properties
    create_nodes
    create_nodes_index
    create_relationship_properties
    create_relationships
  end
  def create_bigger_graph
    create_node_properties
    create_more_nodes
    create_nodes_index
    create_relationship_properties
    create_relationships
  end

We are going to set the first 3000 nodes to be users, the next 100 to be groups, and the next 1 million to be documents.

  def create_nodes
   @nodes = {
             "user"  => { "start" =>     1, "end"   =>   3000},
             "group" => { "start" =>  3001, "end"   =>   3100},
             "doc"   => { "start" =>  3101, "end"   =>1003100}
            }

    @nodes.each{ |node| generate_nodes(node[0], node[1])}
  end
rake neo4j:create

The csv files created for the 1 Million node graph aren’t very large:

-rw-r--r--   1 maxdemarzi  staff    47M Mar 18 02:37 documents_index.csv
-rw-r--r--   1 maxdemarzi  staff    40M Mar 18 02:37 nodes.csv
-rw-r--r--   1 maxdemarzi  staff   259M Mar 18 02:46 rels.csv
-rw-r--r--   1 maxdemarzi  staff   140K Mar 18 02:37 users_index.csv

Now let’s load these in:

rake neo4j:load
java -server -Xmx4G -jar ./batch-import-jar-with-dependencies.jar neo4j/data/graph.db nodes.csv rels.csv node_index Users exact users_index.csv node_index Documents exact documents_index.csv

This will run the following:

Using Existing Configuration File
..........
Importing 1003100 Nodes took 2 seconds
.................................................................................................... 19508 ms for 10000000
.........
Importing 10976303 Relationships took 21 seconds

Importing 3000 Done inserting into Users Index took 0 seconds
..........
Importing 1000000 Done inserting into Documents Index took 7 seconds

Total import time: 34 seconds

Not bad for 1 million nodes and 10 million relationships:

rake neo4j:start

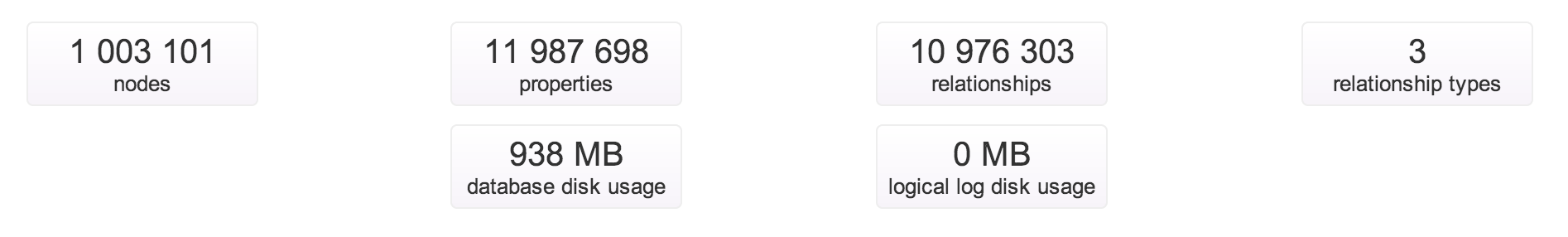

Once we start neo4j and take a look at the web admin, we can see our graph:

Load Small Graph

For our bigger graph, we just add another zero and create 10 Million documents.

def create_more_nodes
   @nodes = {
             "user"  => { "start" =>     1, "end"   =>    3000},
             "group" => { "start" =>  3001, "end"   =>    3100},
             "doc"   => { "start" =>  3101, "end"   =>10003100}
            }

    @nodes.each{ |node| generate_nodes(node[0], node[1])}
  end

We’ll run a different rake task which will overwrite the smaller csv files.

rake neo4j:create_bigger

The csv files created for the 10 Million node graph are just a tad bigger than for 1 Million node graph:

-rw-r--r--  1 maxdemarzi  staff   476M Mar 19 00:33 documents_index.csv
-rw-r--r--  1 maxdemarzi  staff   401M Mar 19 00:31 nodes.csv
-rw-r--r--  1 maxdemarzi  staff   510M Mar 19 05:16 rels.csv
-rw-r--r--  1 maxdemarzi  staff   140K Mar 19 00:33 users_index.csv

Let’s stop the neo4j server and load the bigger graph instead:

rake neo4j:stop
rake neo4j:load
java -server -Xmx4G -jar ./batch-import-jar-with-dependencies.jar neo4j/data/graph.db nodes.csv rels.csv node_index Users exact users_index.csv node_index Documents exact documents_index.csv

I wonder how long this will take:

Using Existing Configuration File
.................................................................................................... 14052 ms for 10000000

Importing 10003100 Nodes took 14 seconds
.................................................................................................... 19242 ms for 10000000
..................................................................................................
Importing 19812750 Relationships took 37 seconds

Importing 3000 Done inserting into Users Index took 0 seconds
.................................................................................................... 64223 ms for 10000000

Importing 10000000 Done inserting into Documents Index took 64 seconds

Total import time: 135 seconds

That’s not bad either. Just over two minutes.

rake neo4j:start

10M graph

Alright. Now we have two bigger graphs we can play with. Stay tuned for the next part where I’ll add two Gatling performance tests to the mix.
